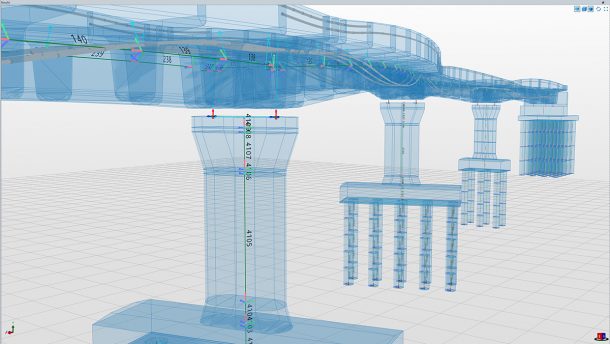

The first view visualizes the geometrical model with all the details defined while modeling.
The complex 3D parametric model created and calculated in Allplan Bridge can be displayed in two different views. This allows to transfer the analytical model to other structural analysis solutions connected to Allplan Bimplus. The analytical model generated in Allplan Bridge can be uploaded to the cloud-based BIM platform Allplan Bimplus. Once the reinforcement is definite (calculated or determined manually), the ULS checks can be carried out. In the second step, the influence lines are evaluated with the corresponding load train (vehicle) and the results are stored as an envelope.Īfter the global effects have been calculated and the corresponding envelopes generated, the user can perform the code-dependent design to determine the required reinforcement area. In the first step, the influence lines are calculated for each element and for all degrees of freedom. With Allplan Bridge, the most unfavorable effects due to traffic loads can be determined quickly and easily. On the other side, the generic approach of live load definition implemented in Allplan Bridge allows the user to consider any type of moving load.Ĭalculation and Evaluation of Influence Lines
On the one side, the traffic load is automatically applied in accordance with the selected standard. Traffic loads can be applied in a very comfortable way. calculating live loads and influence lines as well ascode-based design and the exchange of analytical models. The new version Allplan Bridge 2020-1 contains additional important functions, i.e. Thanks to clear, coordinated processes, the quality of the bridge design increases and deadlines can be better met", says Vanja Samec, Managing Director of ALLPLAN Infrastructure. With Allplan Bridge, we have hit the nerve of the industry. "We are noticing a growing demand for BIM in bridge construction to meet the challenges of the industry, such as planning attractive and permanently safe bridges on time and within budget, worldwide. Munich, Ap– ALLPLAN, the global provider of open solutions for Building Information Modeling (BIM), presents today the update of Allplan Bridge 2020 for parametric modeling and structural analysis of bridges. Allplan Bridge is the first fully integrated 4D BIM solution that uses a common parametric model for both structural analysis, design and detailing. It forms the basis for BIM in bridge construction, which sustainably improves the planning process both in terms of time and quality. Allplan Bridge 2020-1: Calculating live loads and influence lines as well as code-based design and the exchange of analytical models
